How to use DOTE Whisper

The basics in 60 seconds

You recorded an interview, a meeting or a session in the field. The app listens to it, works out who spoke when, and writes down what was said, with a time for every word. You then check and correct that draft, in DOTE or wherever you work.

1. Add recordings by dropping them on the window, or with Browse….
2. Check the settings: the model, the language, and Enable Speaker Diarization if you want speaker labels.
3. Transcribe with Start Transcription.
4. Tune the speaker turns in the Tuning tab until they match what you hear.
5. Export with the JSON, SRT or VTT buttons.

A few words you'll see throughout the app and this guide:

Model

The speech-recognition engine, a version of OpenAI's Whisper. Bigger models are more accurate and slower.

Diarization

Working out who speaks when. The app groups stretches of speech by how the voices sound. It doesn't know anyone's name.

Speaker label

S_01, S_02 and so on, numbered in the order people first speak.

Turn / segment

One continuous stretch of speech by one speaker, with a start and end time. The app shows each as a card.

Confidence

How sure the model was about a word, from 0 to 100%. Low scores mark places to listen again.

Pipeline settings

Settings used while transcribing. Changing them means transcribing again.

Tuning

Adjustments made after transcribing. The transcript updates instantly.

1 · Install & first launch

Download the installer for your computer from the download page and open it.

There is nothing to set up. The app contains everything it needs to read audio and video. The only extra downloads are the models, which the app fetches the first time you use each one (see Choose a model).

2 · A tour of the window

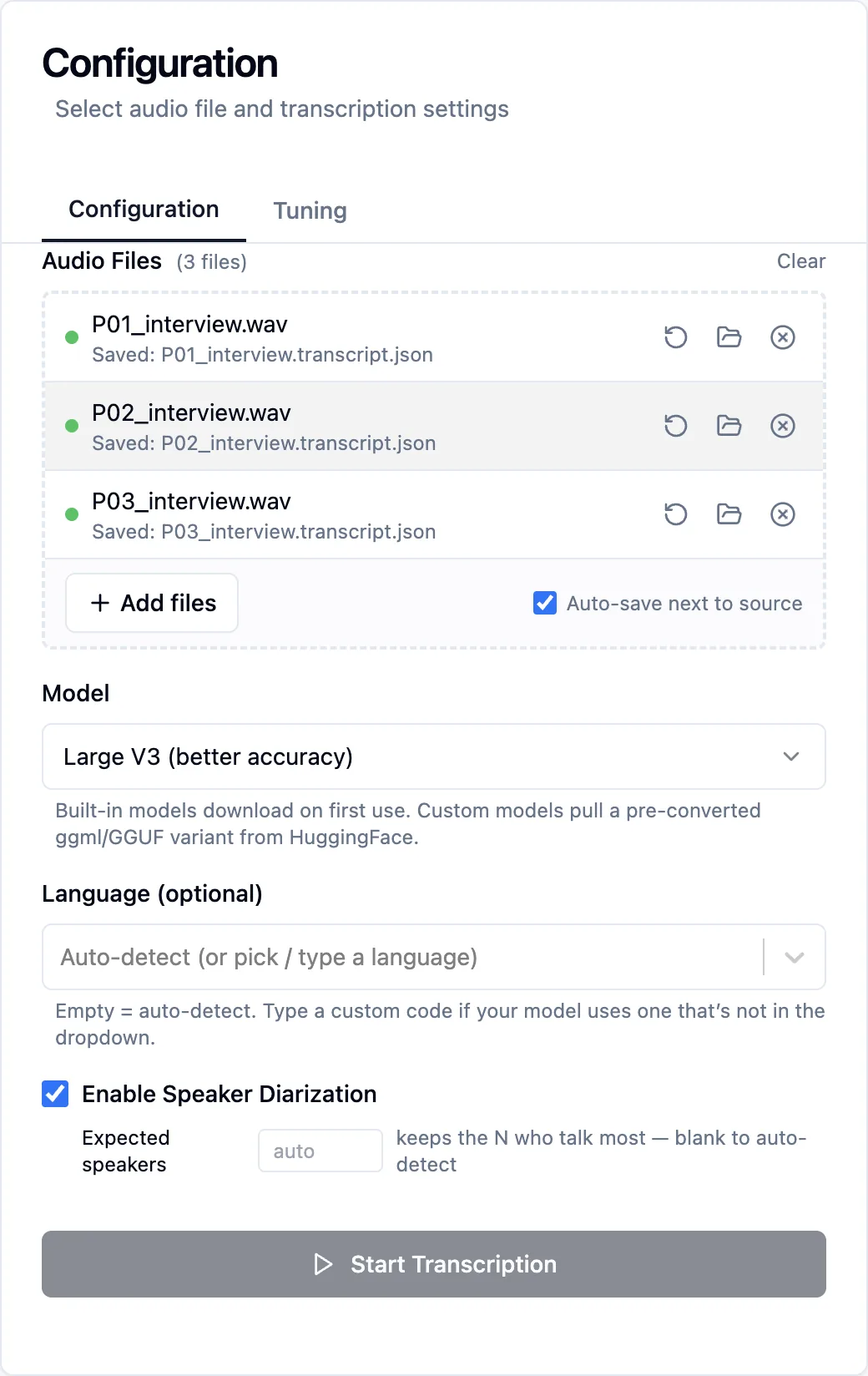

The window has two panels. The left one is where you set things up; the right one shows progress and results.

File → Check for updates… tells you whether a newer version is out. The app also checks quietly each time it starts.

3 · Add your recordings

Drag files from Finder or File Explorer onto the window, or click Browse… and pick one or more.

The app reads MP3, WAV, FLAC, M4A, OGG, AAC and WMA audio, and takes the sound from MP4, MOV, MKV and AVI video. Files of other types are skipped, and the Console says which.

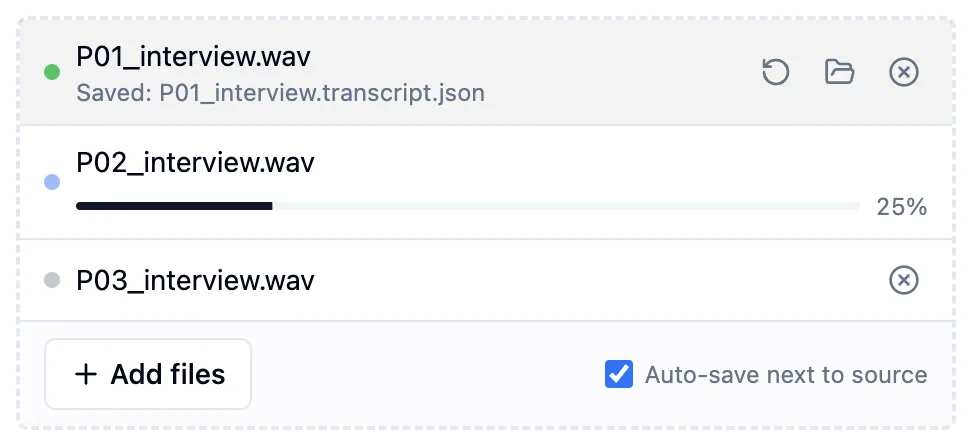

Each file gets a coloured dot: grey waiting, blue running, green done, amber cancelled, red failed (the error shows under the name). Buttons on each row:

Click a finished file's name to show its transcript. Add files adds more at any time, even while a batch is running, and Clear empties the list. Auto-save next to source, on by default, saves each transcript beside its recording as <name>.transcript.json the moment it finishes.

4 · Choose a model

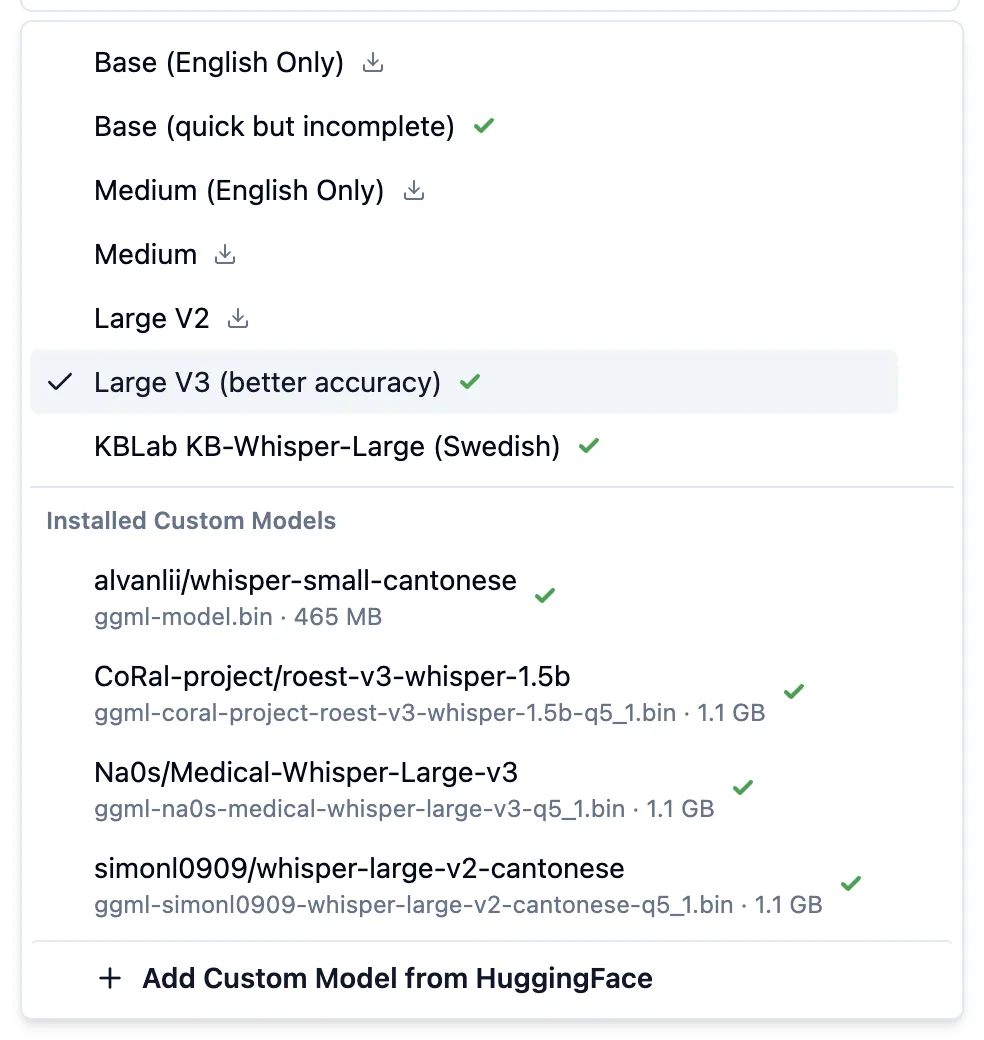

The model decides how accurate the transcript is and how long it takes. The default, Large V3, is the best general-purpose choice.

The English Only versions are slightly faster and more accurate on English, but can't transcribe anything else. If a recording mixes languages, use a multilingual model.

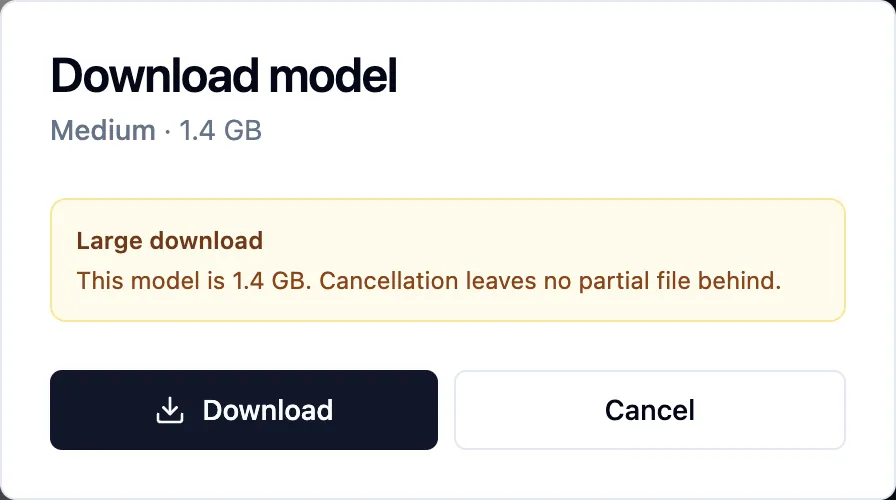

Picking a model you haven't downloaded yet shows its size and asks first. Large downloads take a while; you can cancel, and nothing half-finished is left behind. To free space, hover over a downloaded model in the menu and click . The file goes to the Trash or Recycle Bin, so you can still restore it.

Custom models

Researchers and companies publish versions of Whisper trained further on one language or one kind of speech: Danish, Cantonese, medical dictation, and many more. They live on HuggingFace, and the app can install most of them.

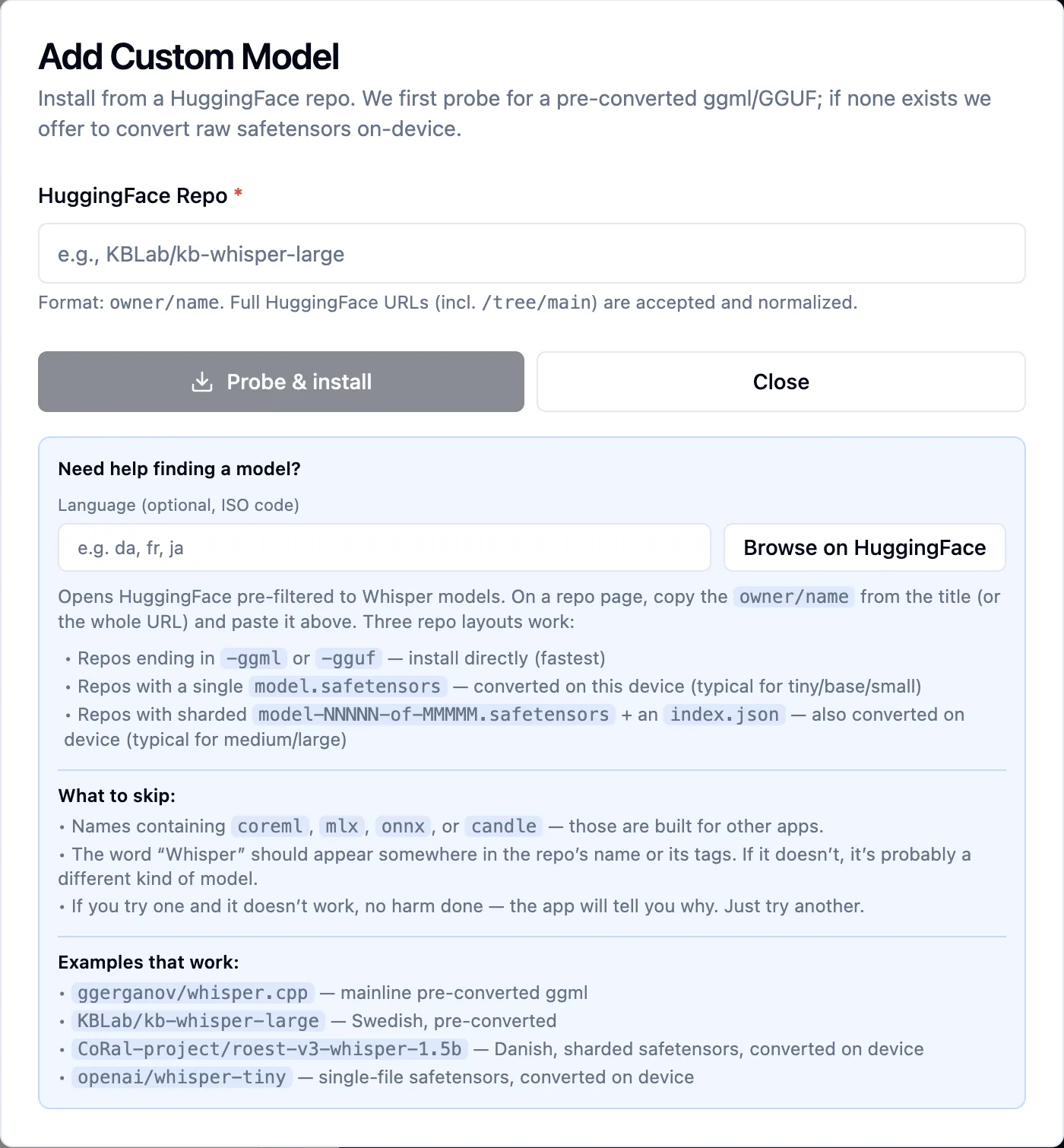

1. Open the model menu and choose Add Custom Model from HuggingFace.
2. Paste the model's name, the owner/name part of its web address. For huggingface.co/KBLab/kb-whisper-large that is KBLab/kb-whisper-large. A full link works too.
3. Click Probe & install. The app checks the model before downloading anything large.

What happens next depends on the model:

• Ready-made versions (names often end in -ggml or -gguf) download and install straight away.

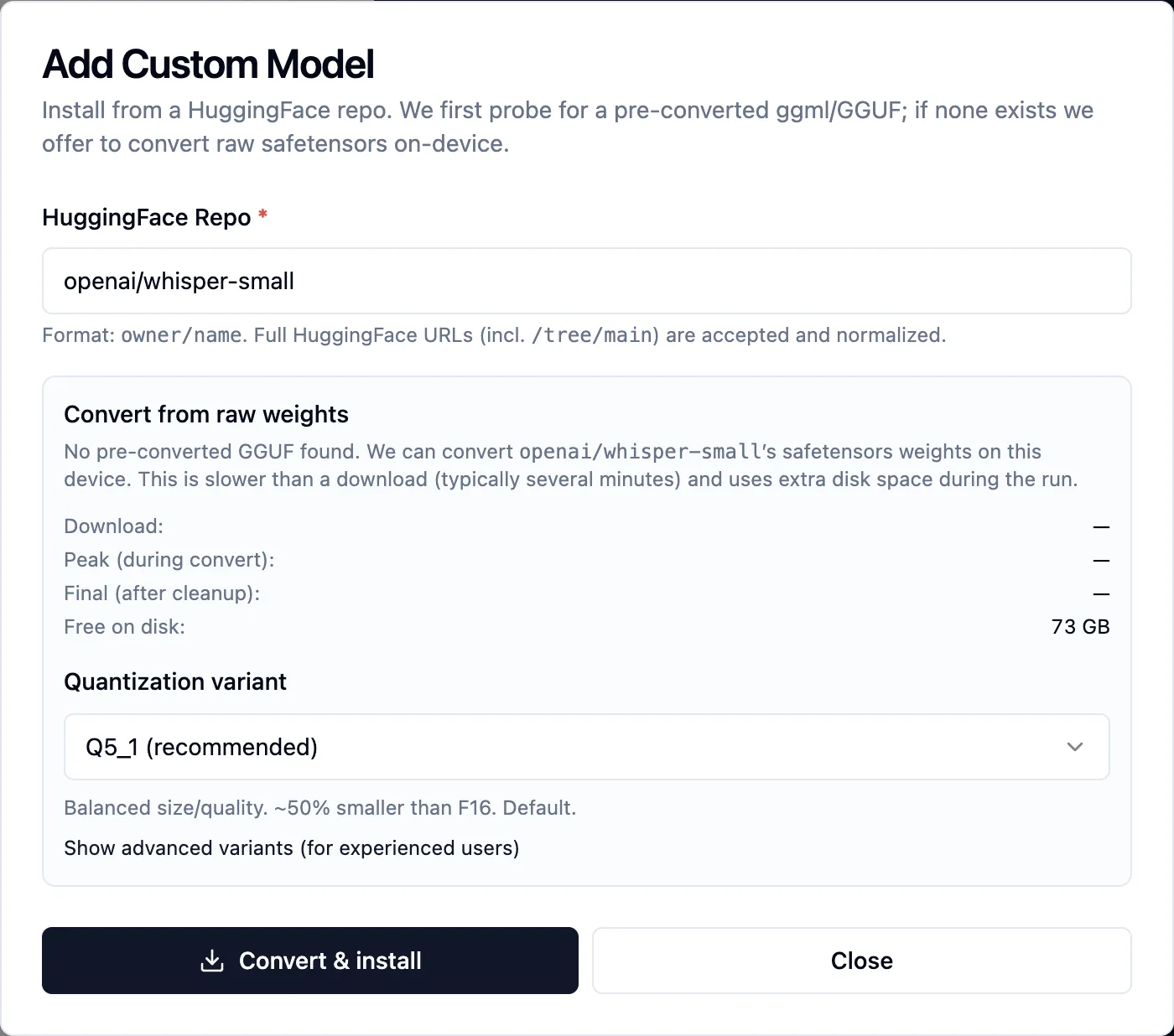

• Standard Whisper models are converted on your computer. The app shows the download size and free disk space, then Convert & install takes a few minutes. Leave the Quantization variant at Q5_1 (recommended): it roughly halves the file size for a very small loss in accuracy.
• Other kinds of model can't be used. The app says why, and nothing large is downloaded.

Browse on HuggingFace opens a search already filtered to Whisper models. Type a two-letter language code first (da, fr, ja) to narrow it. Installed custom models appear under Installed Custom Models in the menu. Check each model's page for its license and for what it was trained on.

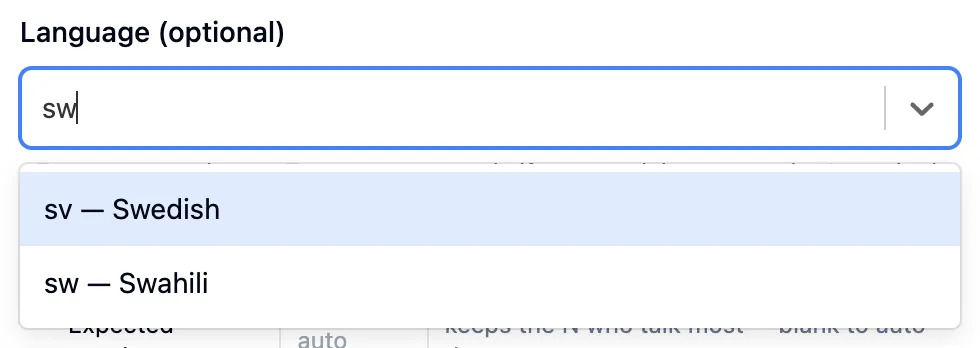

5 · Set the language

Leave Language empty and the app detects it. Setting it yourself is more reliable.

• Set it for noisy or short recordings. Detection listens to the start of the audio and can guess wrong when that part is unclear.
• With speaker labels on, the language is detected per turn. That helps when participants speak different languages, but a short "yes" or "mm" can be mistaken for another language. If the whole recording is in one language, set it.
• Custom codes. If a custom model expects a code that isn't listed, type it and choose Use custom code.

6 · Speaker labels

Tick Enable Speaker Diarization to split the transcript into turns and label each voice.

Expected speakers is optional. If you know how many people speak, enter it: the app keeps the voices with the most speech and folds any extra, smaller ones into them. Leave it blank to let the app decide. You can change the number after transcribing in the Tuning tab, so it's fine to leave blank and look first.

The first time you turn speaker labels on, the app downloads about 35 MB of speaker models. Recordings shorter than about two seconds are transcribed without labels.

7 · Transcribe

Click Start Transcription. With several files waiting it reads Transcribe 3 files, and the app works through them one after another.

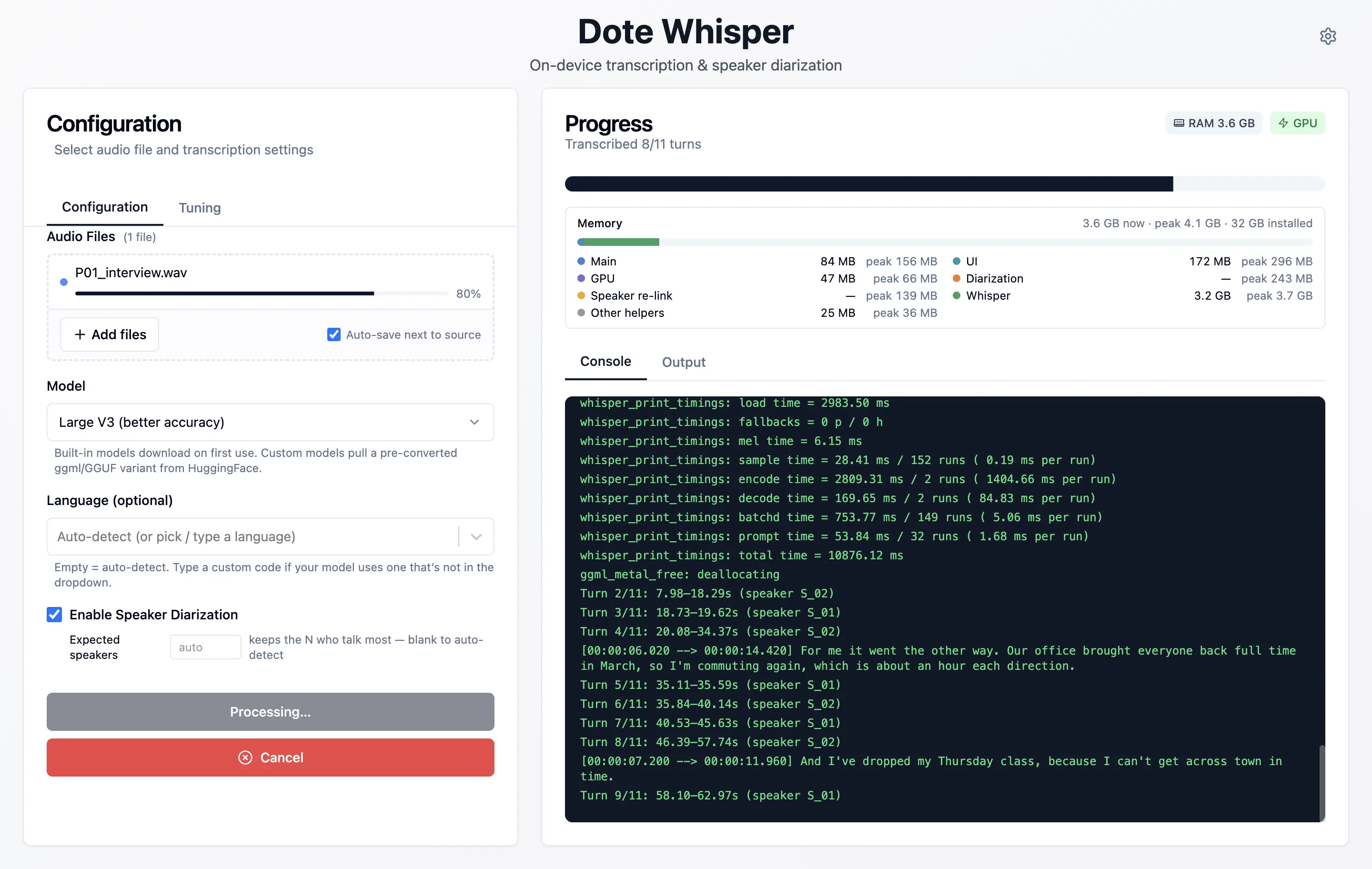

With speaker labels on, the app first finds the speaker turns in the whole recording, then transcribes each turn separately. The Console lists every turn as it goes. On the right of the Progress panel:

Cancel stops the current file; with more files waiting it reads Stop & cancel remaining and stops the batch. You can keep using the rest of the app while it runs, and files you add mid-batch join the end of the queue. When it finishes, the app switches to the transcript and the Tuning tab.

8 · Read the transcript

The Output tab shows the language and number of segments, the Full Text, and then every segment as a card.

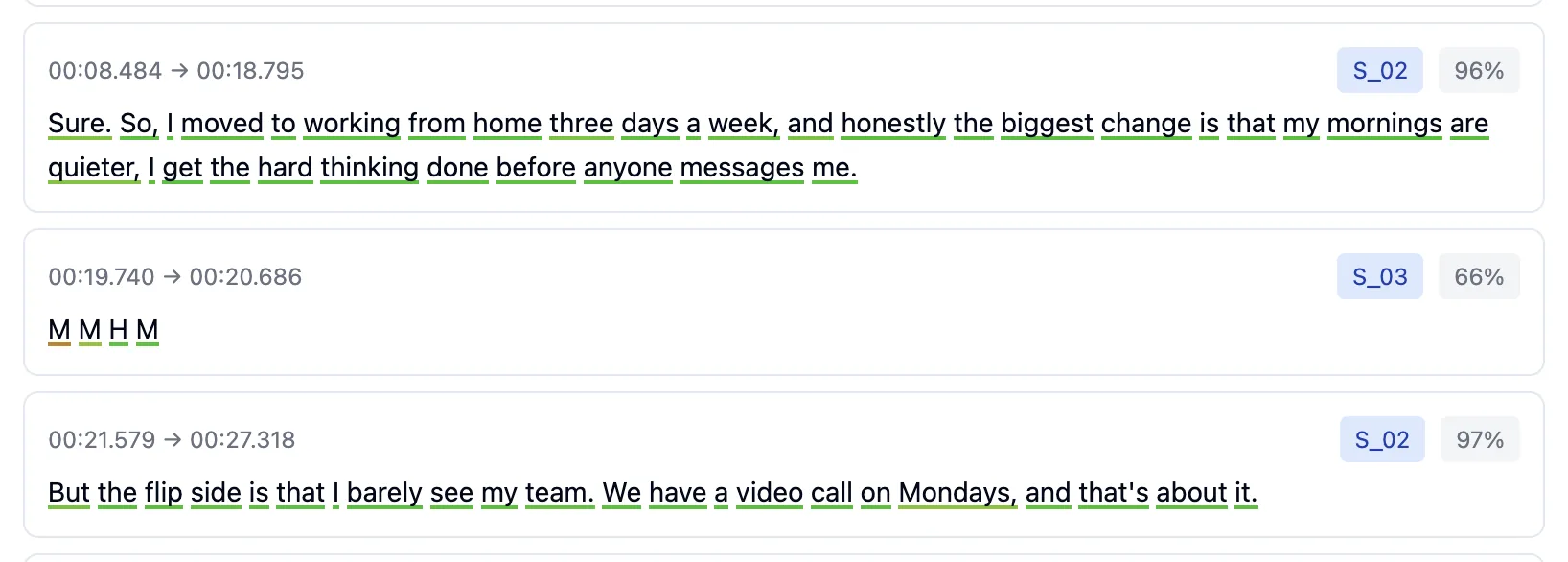

Each card shows the start and end time, the speaker label, and the segment's overall confidence. When several files are done, the Showing menu at the top switches between them.

The colour runs from green (confident) through yellow to red (unsure). A segment's percentage summarises its words, and one very unsure word pulls it down. Low scores tend to mark mumbling, crosstalk, names, technical terms and backchannels. In the example, the model heard a quiet "mm-hm" as the letters M M H M and scored it 66%.

Prefer a different look? Settings → Word-confidence visualization offers a tint behind each word, a thin coloured strip above each segment, a tooltip only, or no colouring.

9 · Tune speaker turns

Automatic speaker labels are rarely perfect. The Tuning tab lets you reshape turns and speakers until they match what you hear, without transcribing again.

How turns are made

Knowing the steps makes it clear which control fixes which problem. While transcribing, the app:

1. Finds speech and marks the points where the voice changes. Stretches shorter than the minimum turn duration (0.3 s by default) are left out at this stage.
2. Groups the stretches by voice, using a speaker model that turns a few seconds of each voice into a "voiceprint". Stretches whose voiceprints are closer than the cluster threshold share a label.
3. Re-links labels. It compares every label's voiceprint and merges those closer than the re-link threshold. This joins up a voice that was split, for example because someone moved away from the microphone, and links speakers across long recordings, which are processed in overlapping 40-minute pieces.
4. Joins a speaker's consecutive turns when the pause between them is shorter than the same-speaker merge gap (1 s).
5. Transcribes each turn, so every word inherits its turn's speaker.

The app saves each speaker's voiceprint with the transcript. That is what lets the Tuning tab regroup speakers instantly. It can merge speakers and turns, but it can never split them, because splitting needs information that only a new run can produce.

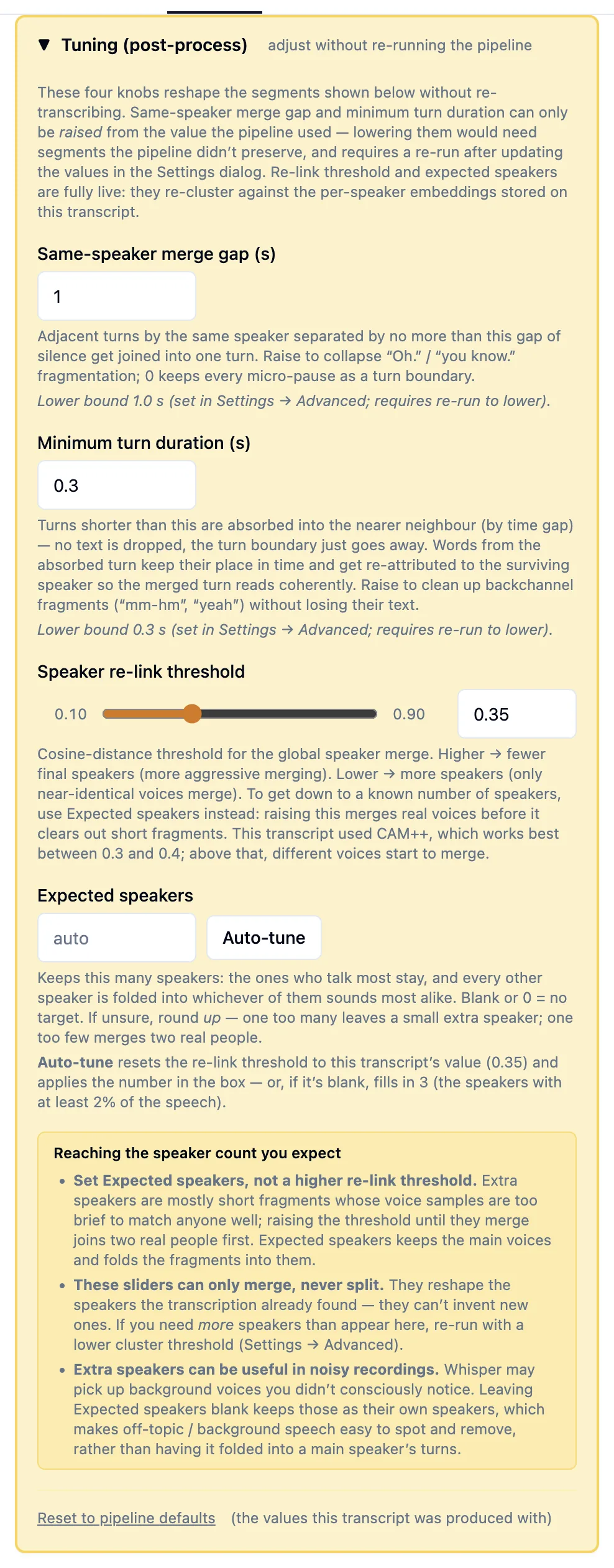

The four controls

Changes show in the Output tab about a quarter of a second after you stop typing or dragging. They're applied in this order:

Speaker re-link threshold

How alike two voiceprints must be to share a label. Higher merges more, so fewer speakers; lower keeps more apart. The help text gives the useful range for the speaker model that was used (0.3 to 0.4 for the default, CAM++). Above it, different people start to merge.

Expected speakers

Keeps this many speakers: the ones who talk most stay, and each other label is folded into whichever of them sounds most alike. Blank or 0 means no target.

Same-speaker merge gap

Joins consecutive turns by the same speaker when the silence between them is no longer than this (up to 5 s).

Minimum turn duration

Turns shorter than this (up to 2 s) are absorbed into the nearer neighbouring turn. No words are lost, but they take on the neighbour's speaker label.

The merge gap and minimum turn duration start at the values used while transcribing and can only go up from there. To go lower, change them in Settings → Advanced and run the file again.

Auto-tune resets the re-link threshold to the transcript's own value and applies the number in Expected speakers. If that box is blank, it fills in a suggestion: the number of speakers who have at least 2% of the speech. Reset to pipeline defaults puts all four back to how the transcript came out.

A worked example

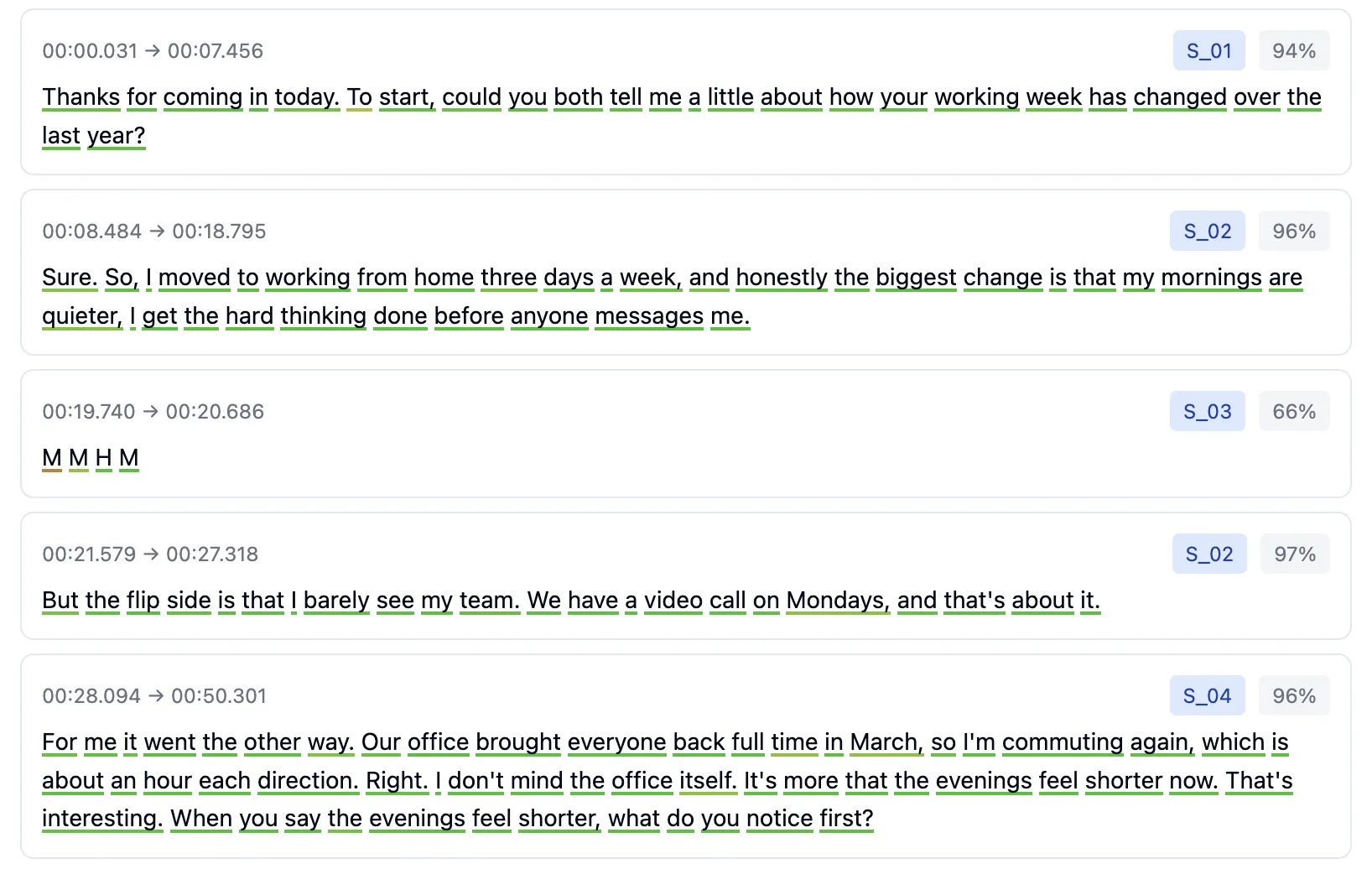

A recorded interview: one interviewer, S_01, and two participants. The app found four speakers. The fourth, S_03, is a single "mm-hm" from the interviewer, too short for its voiceprint to match anyone.

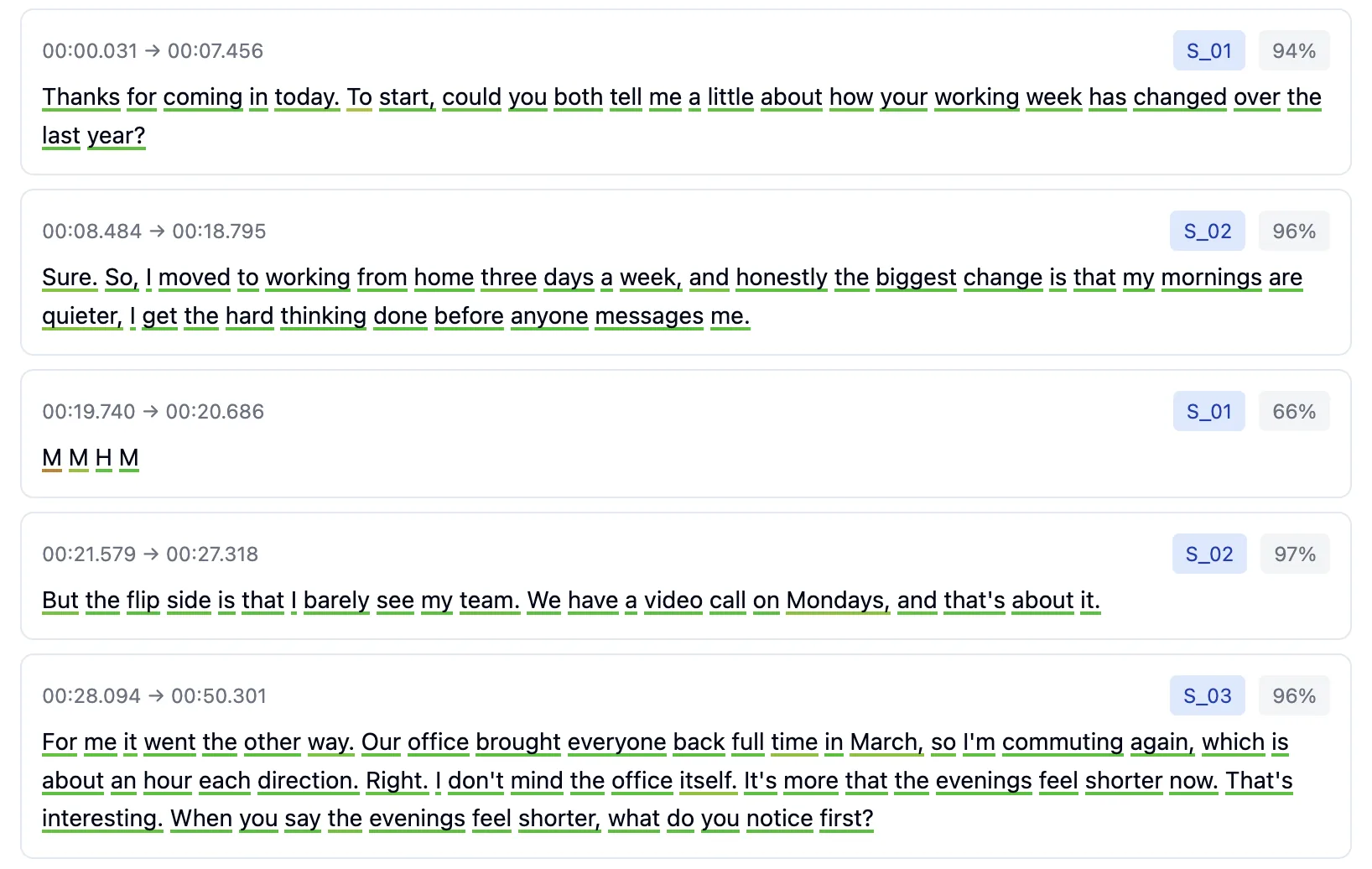

Clicking Auto-tune suggested 3 speakers and folded the stray label into the closest-sounding voice, the interviewer's. Labels are renumbered afterwards, so the second participant is now S_03.

The second participant's answer was still split into two cards with a pause of 1.3 seconds between them. Raising the same-speaker merge gap from 1 to 1.5 joined them:

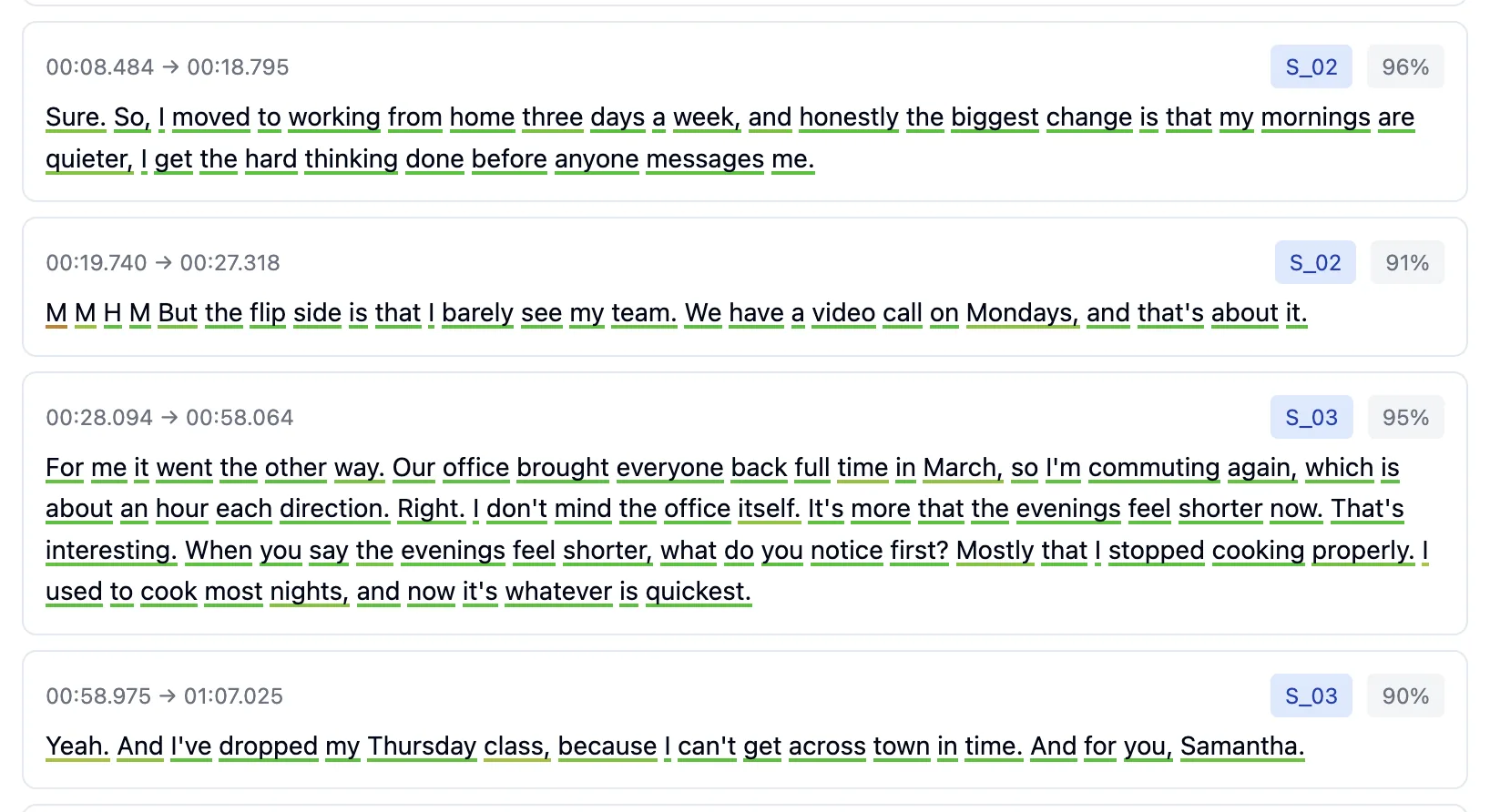

Finally, the minimum turn duration, to show what it does and why to be careful. Raised to 1 second, the two backchannels (the interviewer's "mm-hm" and a participant's "yeah") are absorbed into the neighbouring turns:

The words are still there, but they now belong to the wrong people. That's fine for a readable content summary, and wrong if you study how listeners respond. Choose based on what your analysis needs.

Problem → fix

When to run the file again

Some fixes need a new run, because they change what the app finds in the first place. Change the setting in Settings → Advanced, then click beside the file and Start Transcription.

10 · Save & export

The three buttons above the transcript save it as it looks on screen, tuning included.

A trimmed example of one segment in the JSON:

{
  "generator": "dote-whisper",
  "language": "en",
  "text": "Thanks for coming in today. …",
  "segments": [
    {
      "id": 3,
      "start": 21.58,
      "end": 27.318,
      "text": "But the flip side is that I barely see my team. …",
      "speaker": "S_02",
      "confidence": 0.966,
      "words": [
        { "id": 62, "start": 21.68, "end": 21.68, "text": "But",
          "confidence": 0.817, "speaker": "S_02" },
        …
      ]
    }
  ],
  "post_processing_settings": {
    "tuning": { "same_speaker_merge_sec": 1.5, "min_turn_duration_sec": 0.3,
                "relink_threshold": 0.35, "expected_speakers": 3 },
    "pipeline_floors": { … }
  }
}

Times are in seconds from the start of the recording. post_processing_settings records the tuning you applied and the values the transcript came out with, so you, a colleague or a reviewer can see exactly how it was produced. It also keeps each speaker's voiceprint, under diarizationMetadata.

The app labels speakers S_01, S_02 and so on. To use names or pseudonyms, replace the labels in your transcription tool, or with find-and-replace in the exported file.

11 · Settings

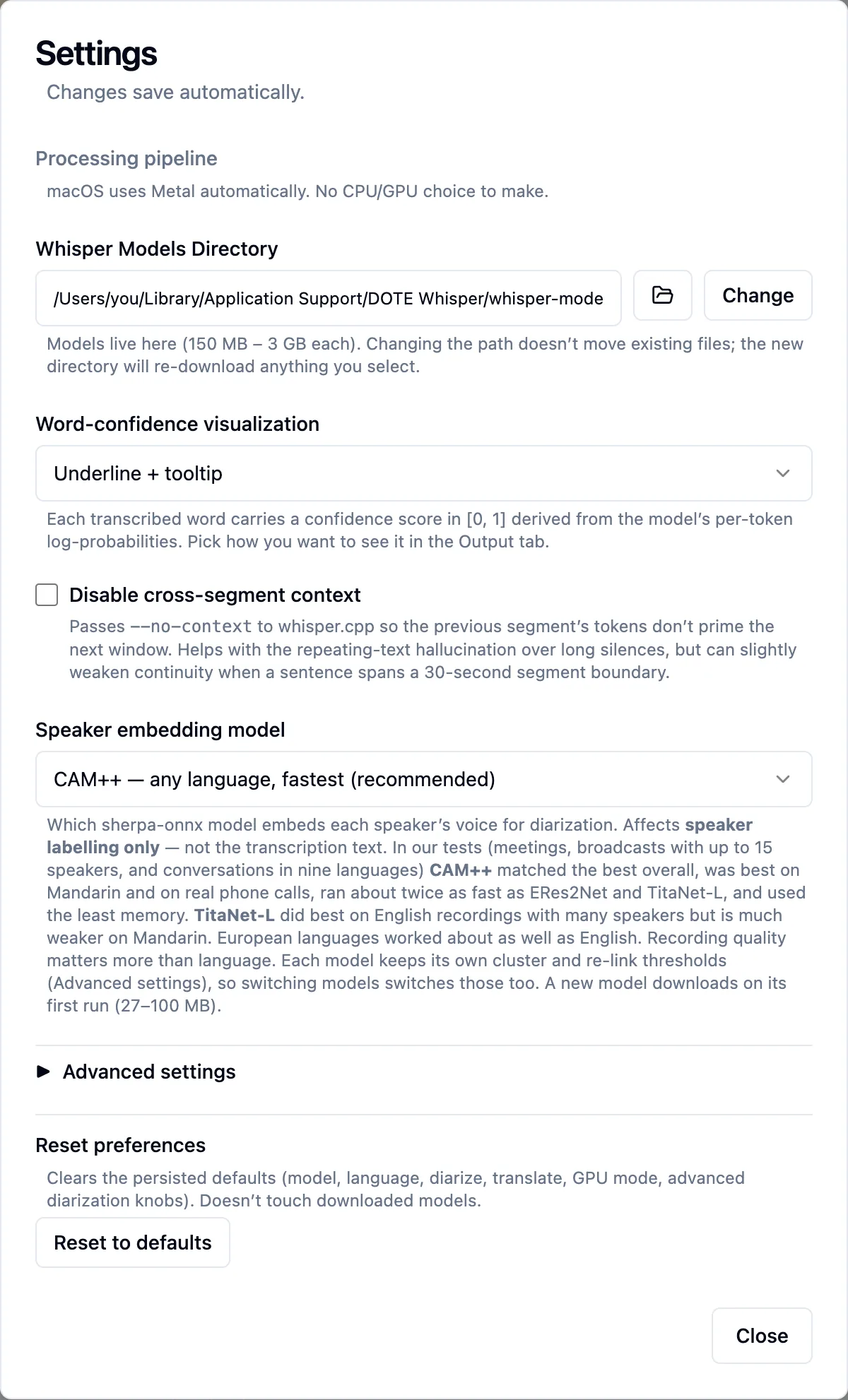

Open Settings with in the top-right corner. Changes save automatically and apply to the next run.

Choosing a speaker embedding model. In the developer's tests on meetings, broadcasts and conversations in nine languages, recording quality mattered more than language:

Each model downloads on first use (27 to 100 MB) and keeps its own threshold settings.

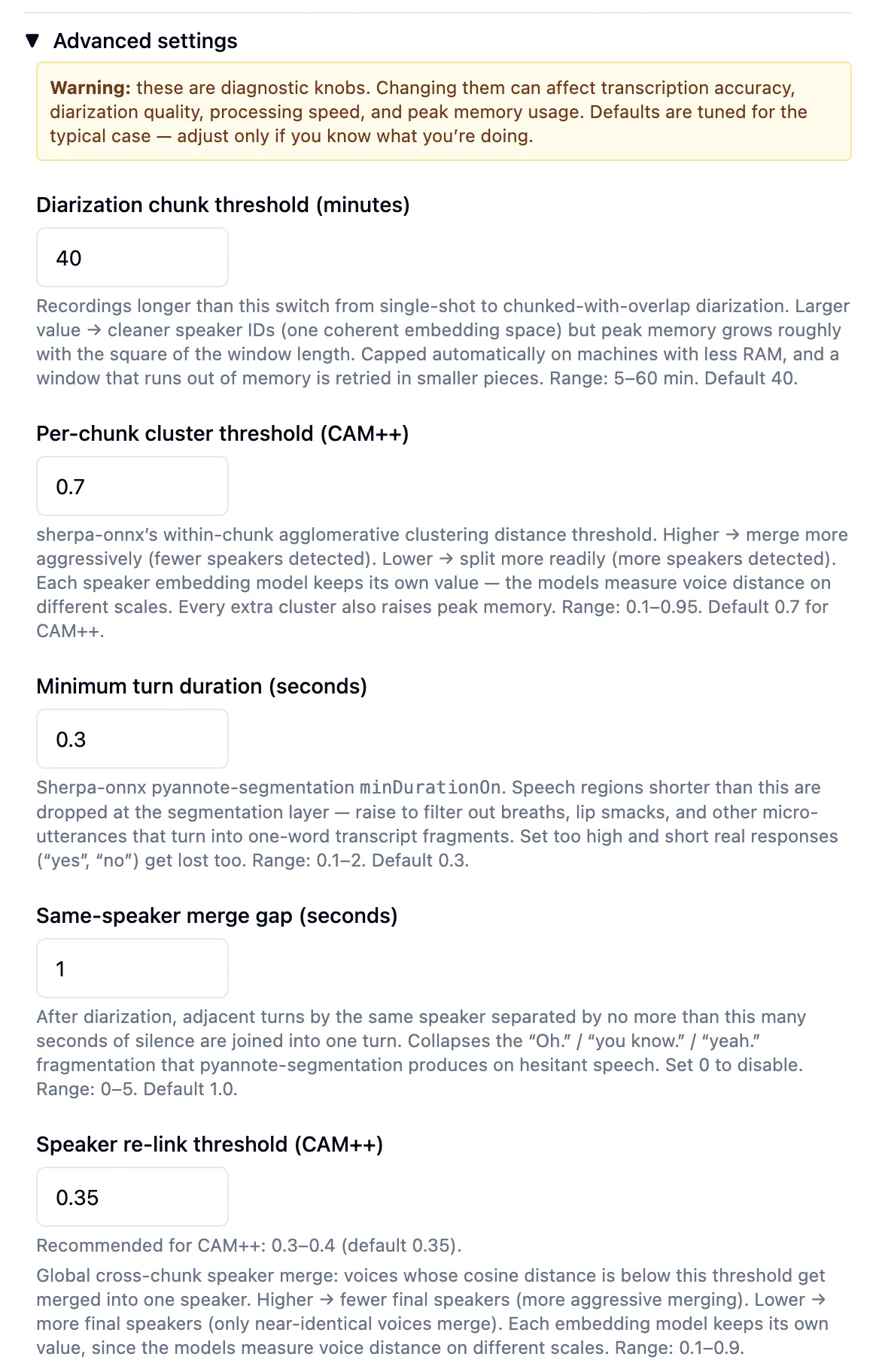

Advanced settings

These are the pipeline settings described in How turns are made. They take effect on the next run. The defaults suit most recordings.

12 · Better results

• Start with the best recording. If you recorded on several devices, use the clearest one. A microphone close to the speakers beats any setting. Where a camera and a separate audio recorder captured the same event, transcribe the audio recorder's file.
• Set the language when you know it.
• Use Large V3 unless speed matters more than accuracy. For a language Whisper handles less well, look for a custom model.
• Tell it how many people speak. An Expected speakers number removes most stray labels.
• Listen where it's red. Low confidence clusters are where corrections pay off.
• Try settings on a short excerpt before running a whole project. Speaker settings that suit one room or group usually suit the rest.

13 · Troubleshooting

The same phrase repeats again and again

A known Whisper habit after long silences or music. Dote Whisper no longer carries words from one 30-second window into the next, which was the main cause, so it should be rare. If it still happens, turn on speaker labels: silences are then mostly skipped.

The text is in the wrong language, or nonsense

Set the Language instead of auto-detect. If you chose an English Only model for a recording in another language, the file stops with an error that explains this: pick a multilingual model.

The Tuning tab says "unavailable for this transcript"

The transcript was made without speaker labels, or the voiceprints couldn't be saved. Tick Enable Speaker Diarization, click and transcribe again. The Console shows any error.

It's slow

Check the Progress panel: CPU means no GPU is being used, which is expected on Intel Macs and on PCs without an NVIDIA card. Try Medium or Base, and leave long batches to run overnight.

The memory badge turns red, or a run fails with a memory error

Close other programs. Long recordings with speaker labels need the most memory. The app retries pieces that run out in smaller parts, and uses shorter pieces on computers with less memory. If it still fails, lower the diarization chunk threshold in Advanced settings, or use a smaller Whisper model.

A custom model won't install

"Not found" usually means a typo, or a private model: only public models can be installed. "Incompatible" means it isn't a Whisper speech-to-text model, so try another. A network error is worth retrying. Some converted models give slightly less precise word times (about 20 ms instead of 10); the words themselves are unaffected.

Windows says "Windows protected your PC"

The installer isn't code-signed yet. Click More info, then Run anyway.

The NVIDIA GPU isn't used on Windows

Update the NVIDIA driver. If the GPU fails mid-run, the app finishes on the CPU instead of stopping. Remote-desktop and virtual-machine sessions usually can't use the GPU.

Where are my files?

How do I update?

When a new version is out, the app tells you as it starts, or when you choose File → Check for updates…. Download it from the download page and install it over the old one. Your settings and models are kept.

How do I cite it?

If you use DOTE Whisper in published work, please cite it along with the projects it builds on: OpenAI Whisper (Radford et al., 2022, Robust Speech Recognition via Large-Scale Weak Supervision), whisper.cpp (Georgi Gerganov) and sherpa-onnx (the k2-fsa project). Reporting the model, the speaker model and the post_processing_settings from your JSON files makes your method reproducible.
